Toyota / Lexus Rear Bump Stops  2 Inch plus For 03-22 4Runner, 06-14 FJ Cruiser, 03-22 Lexus GX DuroBumps
Toyota / Lexus Rear Bump Stops  2 Inch plus For 03-22 4Runner, 06-14 FJ Cruiser, 03-22 Lexus GX DuroBumps Toyota / Lexus Rear Bump Stops  2 Inch plus For 03-22 4Runner, 06-14 FJ Cruiser, 03-22 Lexus GX DuroBumps Toyota / Lexus Rear Bump Stops  2 Inch plus For 03-22 4Runner, 06-14 FJ Cruiser, 03-22 Lexus GX DuroBumps
$160.00

DuroBumps premium bump stops are proudly made in the USA from dual durometer (hardness) rubber, providing smooth, progressive dampening that greatly reduces hard bottom-outs, allowing for greater control and comfort compared to OEM bump stops, which can feel rock-hard on contact. DuroBumps bring better off-road control and comfort compared to OEM bump stops and eliminate the “shell-shock” effect when hitting larger bumps.
Installing the DuroBumps DBR425 is the equivalent of using a 2” block spacer with OEM bump stops. The DBR425 limits wheel-up travel by 2” compared to OEM bump stops and is designed for trucks with a rear lift of 2” or more (fully loaded).
(For lifts under 2” we offer a 3.5” version here)
Features and benefits
Improved handling – Dual durometer rubber allows DuroBumps to act as a secondary coil spring, with smooth engagement that progressively increases compression load in a predictable fashion.
Mounts in OEM location – Easily bolts into the OEM location to ensure a proper fit with no modifications.
Reduced tire rub – Reduced wheel-up travel means less tire rub in the wheel wells and reduced driveshaft contact on the OEM gas tank skid.
Misalignment corrected – The rear OEM bump stops are not aligned properly to the rear axle from Toyota. OEM bump stops are actually misaligned by approximately 1”. DuroBumps addresses this issue by designing the proper offset so DuroBumps contacts the rear axle tube centered as needed.
Increased suspension life – DuroBumps greatly extends the service life of other suspension components by absorbing the shock load applied from suspension bottom-outs. They absorb the impact, saving your critical suspension components from excessive wear and extending service intervals to shocks, upper and lower control arm bushings, and panhard bar bushings.
Small, compact, application specific – Designed for specific truck models, No “universal fit” spacers required.
Smooth and silent – Unlike Hydro bumps, DuroBumps are whisper quiet on contact.
Premium bump stops – DuroBumps are proudly made in the USA from the highest quality raw materials.
Provided mounting hardware – Every set of DuroBumps comes with JIS 10.9 zinc-coated hex head metric bolts and single-use thread locker, to ensure a strong, secure fit.
Note: For off-road use only. By installing these aftermarket bump stops, the user assumes all risk and liability. DuroBumps are not designed for towing applications. For more information, click here. Seller will not be held liable for any damages or loss associated with the installation or use of this product for any reason.

Part# DBR425: Rear Bump Stops

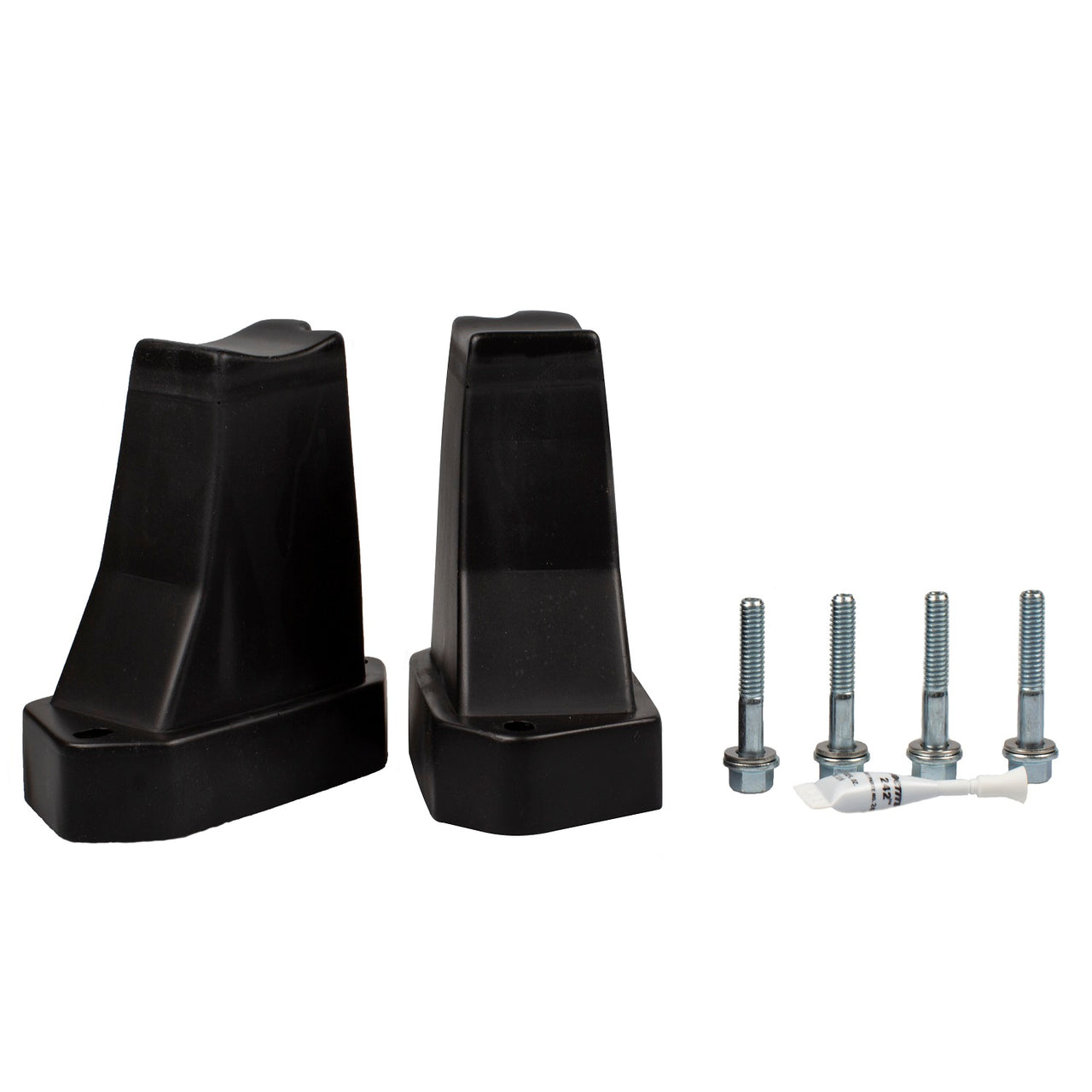

What’s included:
(2) Two 4.25” rear DuroBumps
(4) Four JIS 10.9 M8-1.25 40 mm flange bolt
(1) Single-use medium thread locker
(1) One FREE sticker

Tools required:
• Jack and jack stands
• 12 mm socket wrench
• 19 mm deep socket wrench or lug wrench
• Scraper or wire brush to clean debris
• Torque wrench

Step 1: Following vehicle manufacturer recommendations, use a properly rated jack. Lift the rear of the truck with floor jack and support the frame rails with jack stands. Remove rear wheels.
Be sure to use jack stands!
Step 2: Remove the OEM bump stop located on the frame rail above the rear axle tube, using a 12 mm deep socket. There are 2 bolts for each bump stop.
Step 3: Use a scraper or wire brush to clean any mud/debris from the frame.
Step 4: Your rear DuroBumps are side specific. Each of the DuroBumps has a driver/passenger side sticker attached, denoting their respective sides of the vehicle. Insert the flange bolt into the mounting hole of the DuroBumps and apply provided thread locker on the threads of the bolt. Mount DuroBumps in OEM location using a 12 mm socket wrench until snug (10 – 12 ft. lbs.). Do not over-tighten bolt.
Step 5: Repeat steps 2 – 4 on the other side.
Step 6: Reinstall wheels and lower vehicle back to the ground. Torque lug nuts to factory specifications.

Now go hit some trails or cruise the mall … whatever you're into!
